Overview

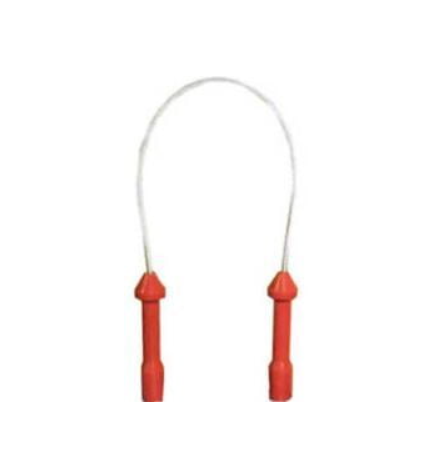

The WM-5C Cable Type Permanent Magnetic Yoke is a portable non-destructive testing (NDT) inspection tool designed for magnetic particle inspection. It operates without electricity, making it highly reliable and convenient for field inspections in industrial environments.

Key Features

• Permanent rare earth magnet technology
• No electrical power required (fully portable)
• Lightweight ergonomic design for operator comfort
• High lifting capacity over 60 lbs
• Consistent minimum 50 lbs lifting force
• Flexible coated cable for better surface contact
• Supplied with calibration certificate

Applications

• Weld inspection
• Aerospace inspection
• Automotive quality control
• Pressure vessel testing
• Pipeline and fabrication inspection
• Manufacturing quality assurance

Technical Specifications

• Model: WM-5C
• Type: Cable Type Permanent Magnetic Yoke
• Magnet Type: Rare earth magnet cartridges
• Lifting Capacity: >60 lbs (minimum 50 lbs / 23 kg)
• Power Requirement: None (permanent magnetic system)
• Cable Type: Flexible coated cable
• Operation: Portable manual inspection tool
• Certification: Calibration certificate included
• Documentation: Operator manual included
