Overview

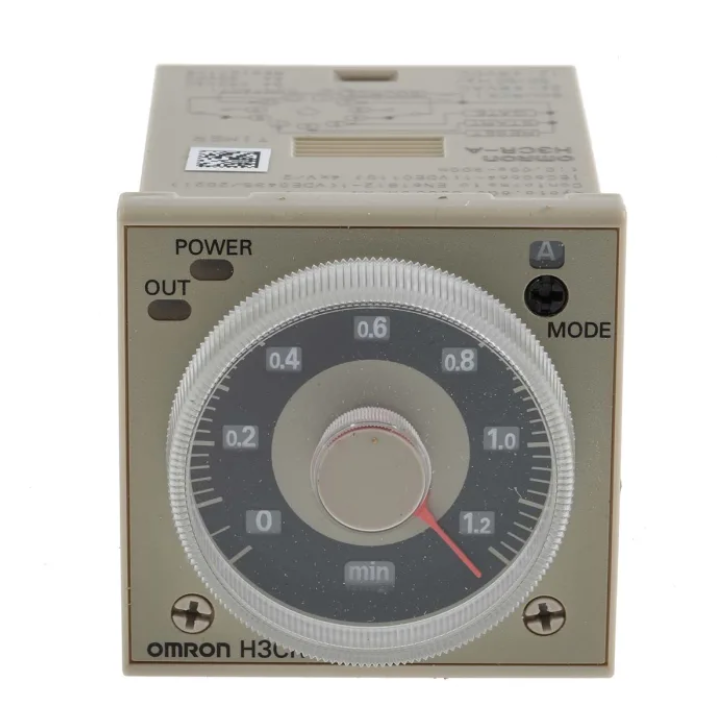

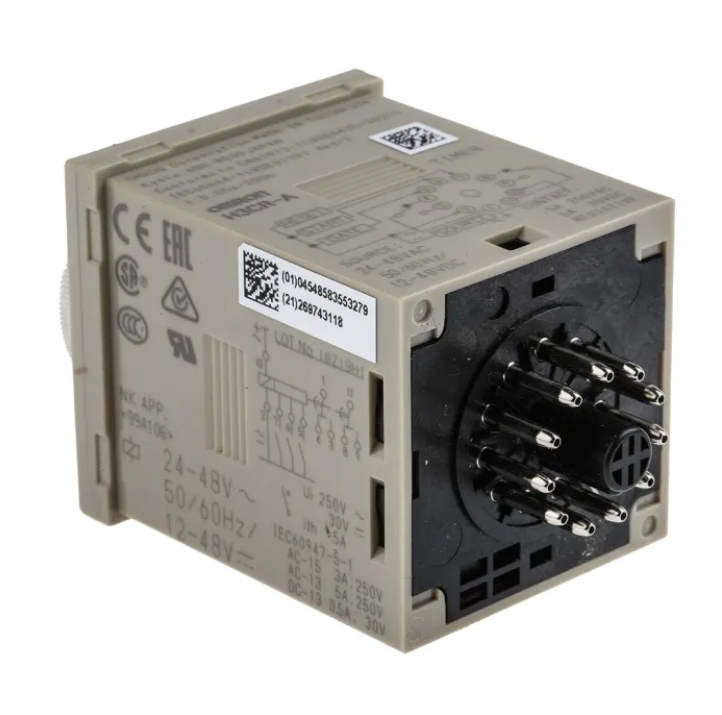

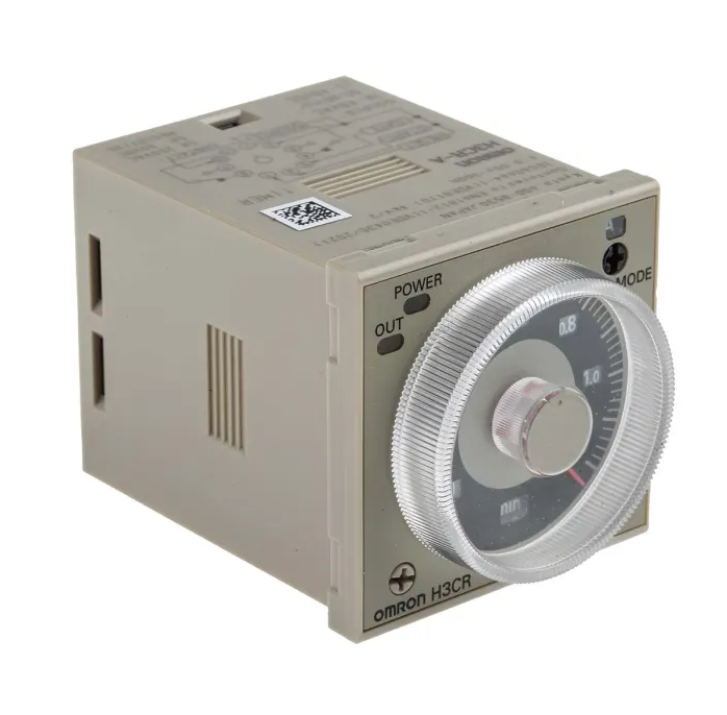

The Omron H3CR-AP Multi-Function Timer Relay is a compact and highly reliable industrial timing device designed for automation control systems. With a wide AC/DC input range and multiple operating modes, it is widely used in control panels for sequencing, delay control, and industrial automation applications.

Key Features

• Wide AC/DC supply range reduces inventory requirements
• Multi-function operation with multiple timing modes
• Compact DIN rail mounting design for control panels
• Low power consumption with efficient ecological design
• Instantaneous output for easy sequence checking
• High reliability for industrial automation systems

Applications

• Industrial control panels
• Automation systems
• Motor and pump control circuits
• Process timing and sequencing systems
• Electrical distribution panels

Technical Specifications

• Model: H3CR-AP
• Supply Voltage: 12–48V DC / 24–48V AC
• Time Range: 0.05 sec – 300 hours
• Mode of Operation: ON Delay / Multi-function
• Contact Configuration: DPDT (2C/O)
• Current Rating: 5A
• Mounting Type: DIN Rail
• Terminal Type: Crimp
• Dimensions: 48 × 48 × 81.6 mm
• Operating Temperature: -10°C to +55°C
• Series: H3CR
